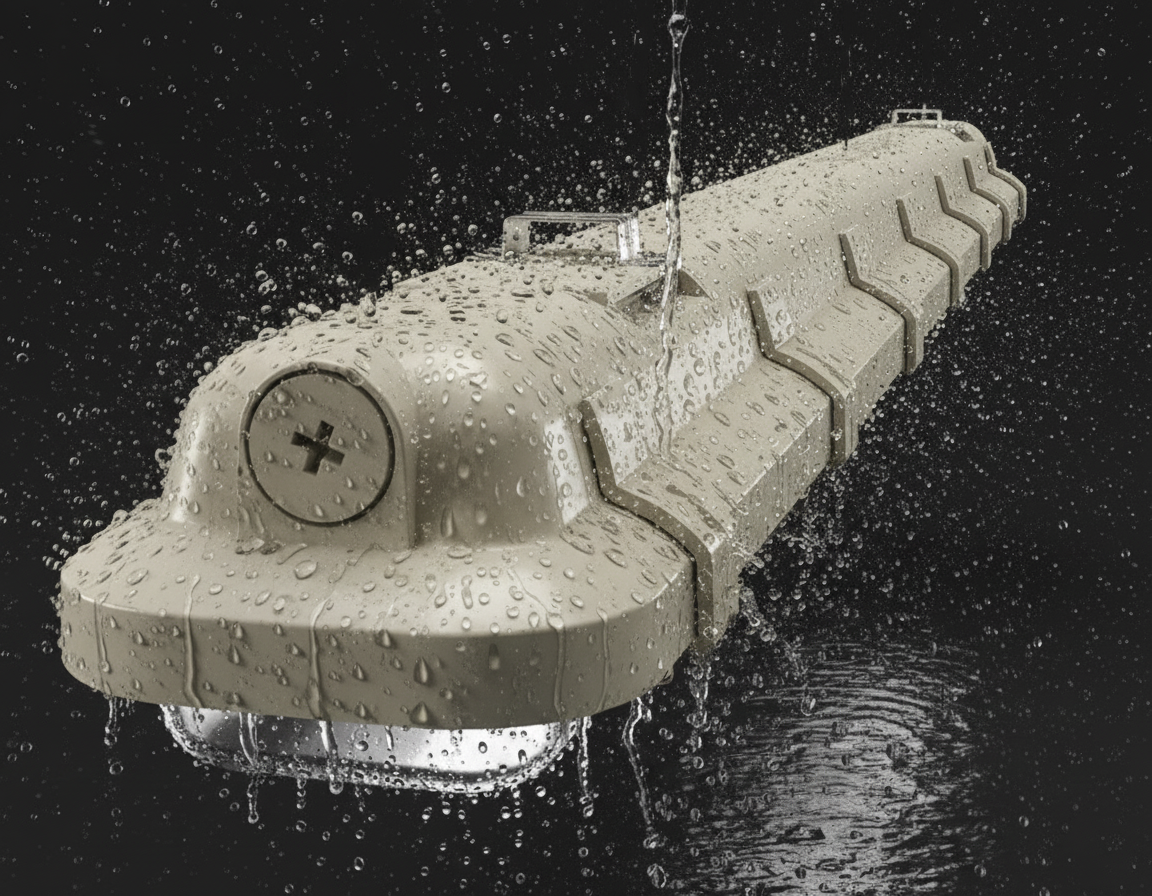

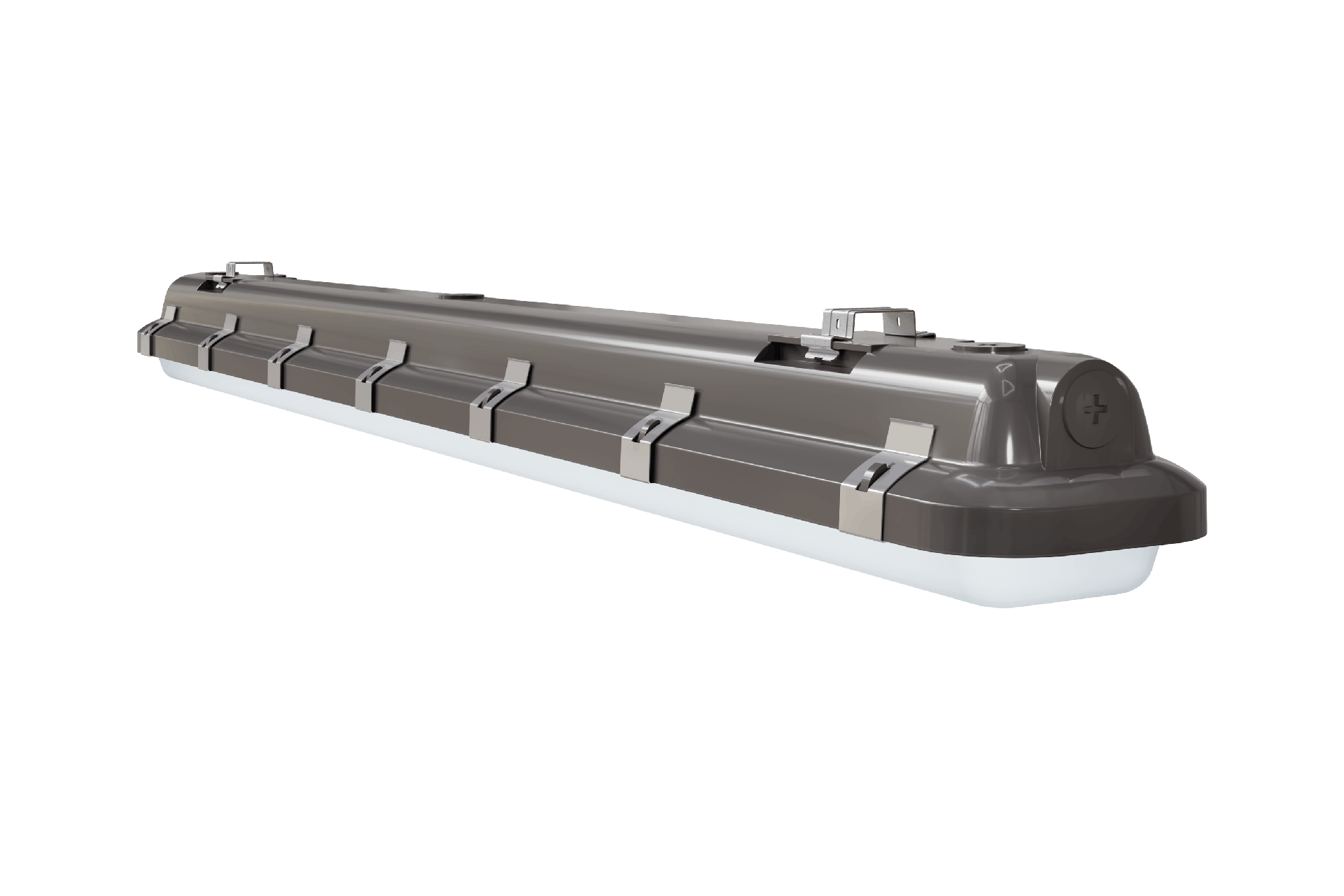

Nautilus Vapor Tight LED Light- IP69K Chemical-Resistant
Features and Benefits
- IP69-rated & Washdown Ready
- NSF Certified for Food Zones
- Circular, Easy-Clean Design
- Durable Polycarbonate Construction with 316 Stainless Steel Endcaps
- High Lumen Output & Efficiency
- Available with 3 different mounting options
Overview
The Nautilus is a high-performance vapor tight LED linear fixture engineered for rigorous chemical environments. With an IP69 rating, it withstands high-pressure, high-temperature water jets. Built to NSF food-zone standards, its design prevents accumulation of debris or residues, enabling fast, thorough cleaning and sanitation. The ulimate Chemshield PCX plastic is a blended PC/PET material that is chemical resistant.
Applications
- Food processing, meat processing, and agricultural facilities
- Poultry Commercial and Industrial Farm
- Cold storage and freezer facilities
- Commercial kitchens and food preparation areas
- Pharmaceutical manufacturing
- Car wash facilities
- Dairy processing and beverage production facilities
- Marine and boat wash facilities
- Industrial and Chemical cleaning stations
Certifications
Nautilus 360° Viewer
Loading... 0
%
Drag to rotate
Specification Table
| Product Type | Vapor Tight Linear Light | Lengths Available | 2 ft, 4 ft, 8 ft |
| Dimensions (4 ft) | 47" x 3.7" (L x D) | Housing Material | Polycarbonate or Acrylic with Stainless Steel End Caps |
| Lens Options | Clear PC, Frosted PC, Clear Acrylic, Frosted Acrylic | Lumen Packages | 2,000 – 20,000 lumens |
| Efficacy | Up to 140 lm/W | CCT Options | 3000K, 3500K, 4000K, 5000K |
| CRI | 80 (Standard), 90 (Optional) | Operating Voltage | Universal (120-277 VAC) or High Voltage (347-480 VAC) |
| Frequency | 50/60 Hz | Power Factor | >0.90 |
| Dimming | 0-10V Standard, Dim-to-Off Option | IP Rating | IP65, IP66, IP67, IP69 |
| NEMA Rating | 4X | NSF Certified | Yes (Near Food Safe) |
| Certifications/Compliance | UL 1598 Wet Location, Made in USA, BAA/BABA Compliant | Mounting Options | Wire Form Bracket, Latch Mount, Rigid Mount |
| Optional Features | 10W Emergency Backup, PIR Occupancy Sensor, 10 ft Cord/Cord with Plug | Warranty | 5 Year |
