Citadel Value Series 4 Ft. Vapor Tight LED Light | IP67 and NSF
Features and Benefits
- IP67-rated, weather and water resistant
- NSF Certified for Splash Zones
- Captive latches won't fall off during maintenance
- Impact resistant acrylic or polycarbonate lens options
- Pour-in-place polyurethane gasket creates watertight seal
- Made in USA with BAA/BABA compliance
Overview

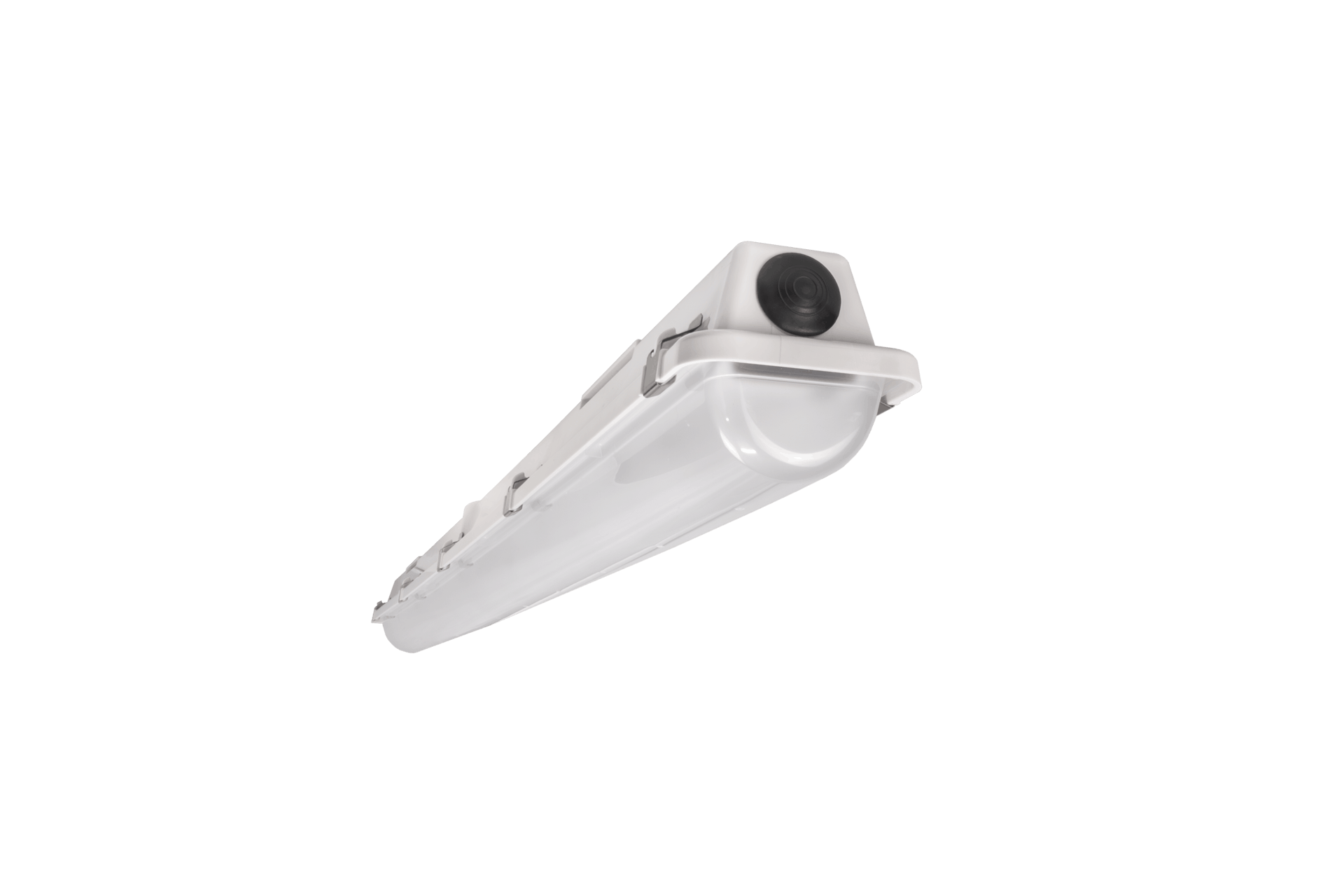

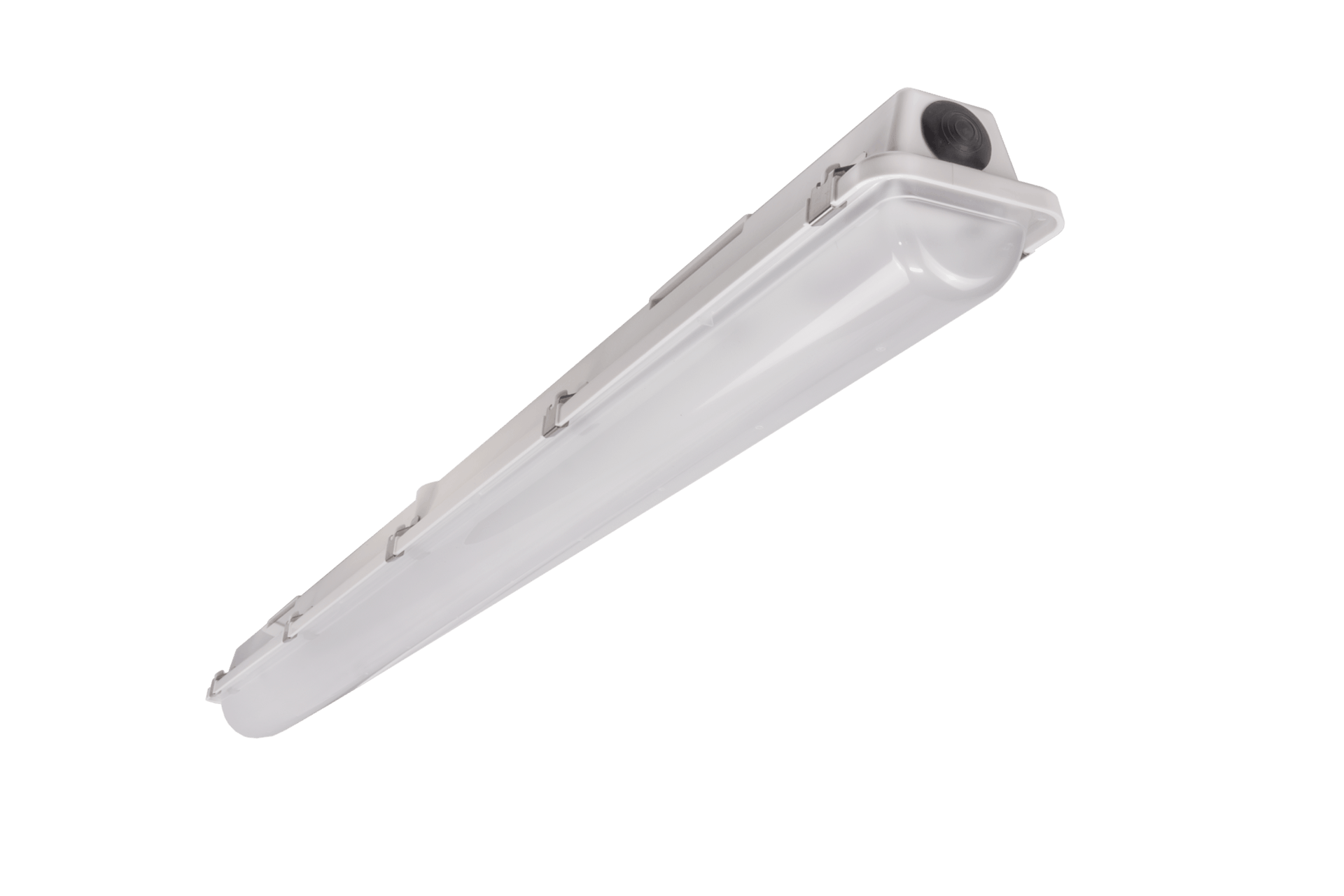

The Citadel™ Value Series 4 Ft. Vapor Tight Linear LED Light is engineered for essential environmental protection without compromise. Built with impact-resistant UL 5VA polycarbonate housing and simplified latching system, this fixture delivers
IP67-rated moisture and dust protection where budgets matter as much as performance. The open-bottom design provides tool-free lamp access and UVC retrofit capability, making it the practical choice for warehouses, light manufacturing, retail spaces, and commercial facilities that need dependable vapor tight lighting at an entry-level price point..
Applications
- Warehouses and distribution centers
- Light manufacturing and assembly facilities
- Retail back-of-house and storage areas
- Commercial building maintenance spaces
- School corridors and institutional facilities
- Parking garages and covered structures
- Loading docks and receiving areas
- General-purpose indoor/outdoor commercial spaces
Specification Table
| Product Type | Vapor Tight Linear LED Light | Lengths Available | 4 ft |
| Dimensions (L x W x H) | 51.75" x 4.10" x 4.29" | Housing Material | UL 5VA Acrylic |
| Weight | Varies by configuration* | Lens Material | Acrylic or Polycarbonate |
| Lens Options | Clear, FR50 Frosted (Lineal Ribbed or Smooth) | Lumen Packages | 4,000 – 8,000 lumens |
| Wattage Range | 16W – 37W | Efficacy | Up to 140 lm/W |
| CCT Options | 3000K, 3500K, 4000K, 5000K, Selectable 35K-40K-50K | CRI | 80 (Standard), 90 (Optional) |
| Operating Voltage | Universal (120-277 VAC) or High Voltage (347-480 VAC) | Frequency | 50/60 Hz |
| Power Factor | >0.90 | Dimming | 0-10V Standard, Dim-to-Off Option |
| IP Rating | IP65, IP66, IP67 | NEMA Rating | 4X |
| NSF Certified | Yes (Splash Zone Safe) | UL Listing | Wet Location, UL 1598 |
| Operating Temp | -40°F to 131°F (-40°C to 55°C) | Certifications/Compliance | RoHS, DLC QPL, Made in USA, BAA/BABA Compliant |
| Mounting Options | Surface Brackets, Pendant | Hub Sizes | ½" NPT, ¾" NPT |
| Latch Options | White or 316 Stainless Steel | Continuous Row | Yes |
| Optional Features | 10W Emergency Backup, PIR Occupancy Sensor, 10 ft Cord/Cord with Plug | Warranty | 5 Year |
