Citadel Round Vapor Tight LED Light IP69 and NSF
Features and Benefits
- IP69-rated & Washdown Ready
- NSF Certified for Splash Zones
- Compact low bay design fits tight places
- Impact resistant acrylic or polycarbonate lens options
- Fiberglass housing will not burn or melt and chemical resistant
- Pour-in-place polyurethane gasket creates watertight seal
Overview

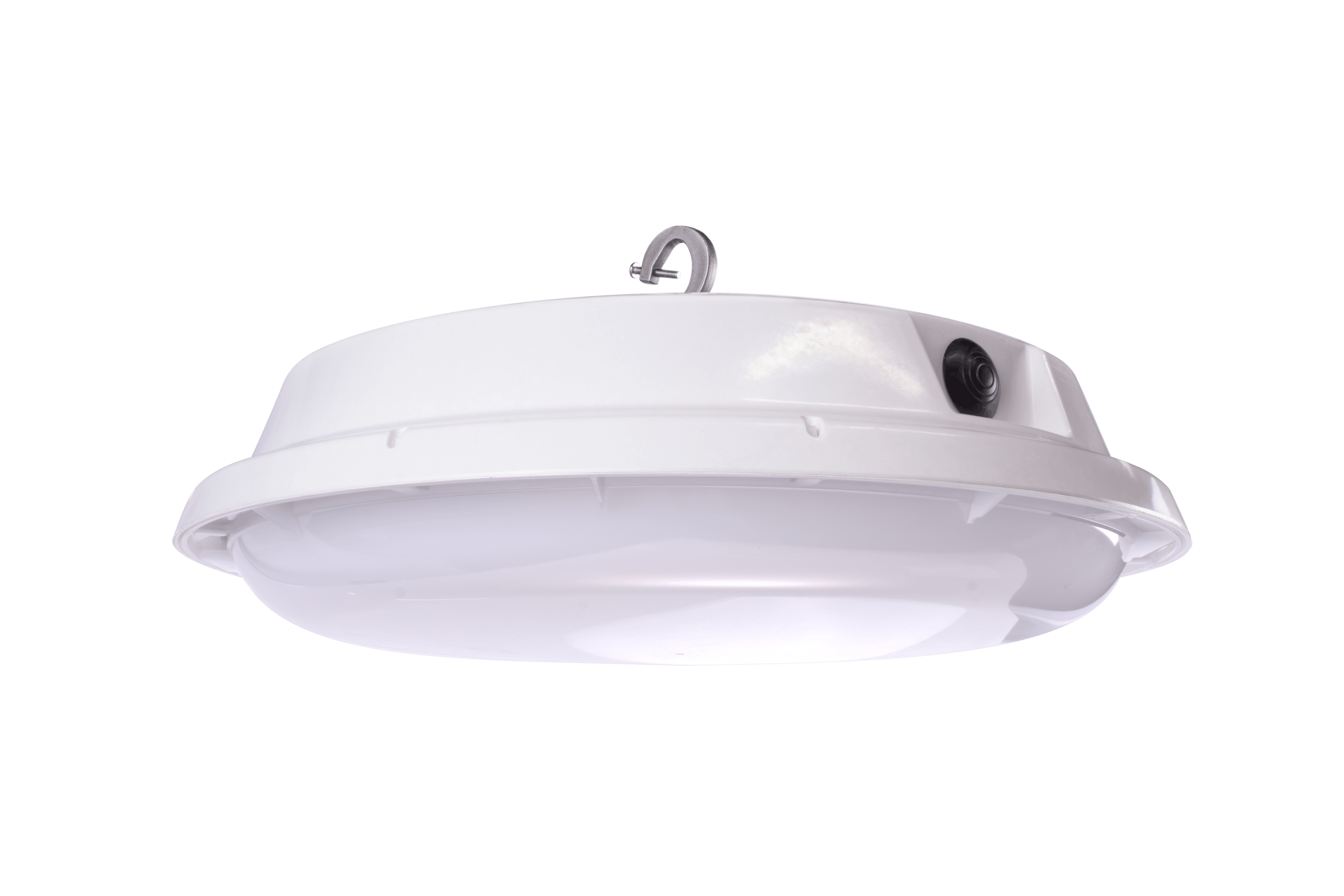

The Citadel Round™ Compact Vapor Tight LED Low Bay packs the Citadel platform into a clean 18” round footprint built for tight low bay spaces. SLP’s PinSert™ System replaces bulky latches for a sleeker profile, and the fixture achieves IP65, IP66, IP67, and IP69 ratings with a 1500 PSI washdown rating. The UL 5VA fiberglass housing won’t melt or burn, and the poured-in-place polyurethane gasket ensures exceptional sealing. NSF-certified for food processing, it’s ideal for processing plants, parking garages, and industrial low bay applications.
Applications
- Parking garages and covered parking structures
- Food processing facilities requiring washdown capabilities
- Cold storage warehouses and walk-in freezers
- Manufacturing facilities with dust and moisture
- Low ceiling industrial areas and mezzanines
- Loading docks and shipping/receiving areas
- Commercial kitchens and prep areas
- Car wash facilities
- Aircraft hangars and aviation maintenance facilites
- Indoor pools and aquatic facility decks
Specification Table
| Product Type | Compact Vapor Tight LED Low Bay | Diameter | 18 in (Round) |
| Dimensions (D x H) | 17.89" x 5.34" | Housing Material | UL 5VA Fiberglass |
| Weight | Varies by configuration | Lens Material | Acrylic or Polycarbonate |
| Lens Options | Drop Clear or Frosted (Acrylic or PC) | Lumen Packages | 12,000 – 30,000+ lumens |
| Wattage Range | Varies by lumen package | Efficacy | Up to 175 lm/W |
| CCT Options | 3000K, 3500K, 4000K, 5000K | CRI | 80 (Standard), 90 (Optional) |
| Operating Voltage | Universal (120-277 VAC) or High Voltage (347-480 VAC) | Frequency | 50/60 Hz |
| Power Factor | >0.90 | Dimming | 0-10V Standard, Dim-to-Off Option |
| IP Rating | IP65, IP66, IP67, IP69 | NEMA Rating | 4X |
| NSF Certified | Yes (Near Food Safe) | UL Listing | Wet Location, UL 1598 |
| Operating Temp | -40°F to 131°F (-40°C to 55°C) | Certifications/Compliance | RoHS, DLC QPL, Made in USA, BAA/BABA Compliant |
| Mounting Options | Hook, Bracket, Pendant, J-Box | Hub Sizes | ½" NPT, ¾" NPT |
| Closure System | PinSert™ System (9 Pins) | Continuous Row | No |
| Optional Features | 10W Emergency Backup, PIR Occupancy Sensor, 10 ft Cord/Cord with Plug, 316 SS Hook | Warranty | 5 Year |
