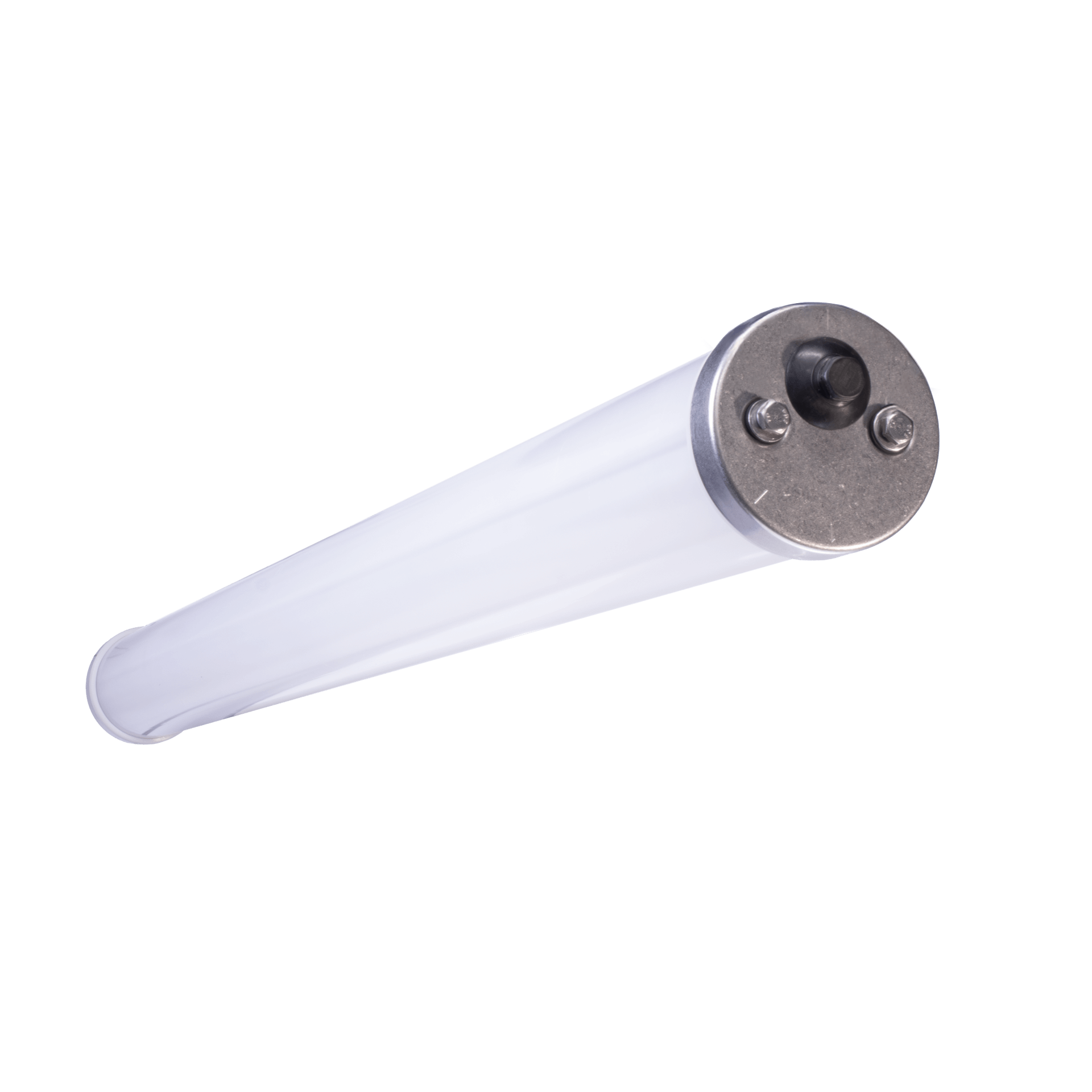

ProTube Washdown LED Linear Light No Mounting

ProTube IP69 Washdown LED Linear Light | NSF Tri-Proof

Features and Benefits

  • IP69-rated & Washdown Ready
  • NSF Certified for Food Zones
  • Circular, Easy-Clean Design
  • Durable Polycarbonate Construction with 316 Stainless Steel Endcaps
  • High Lumen Output & Efficiency

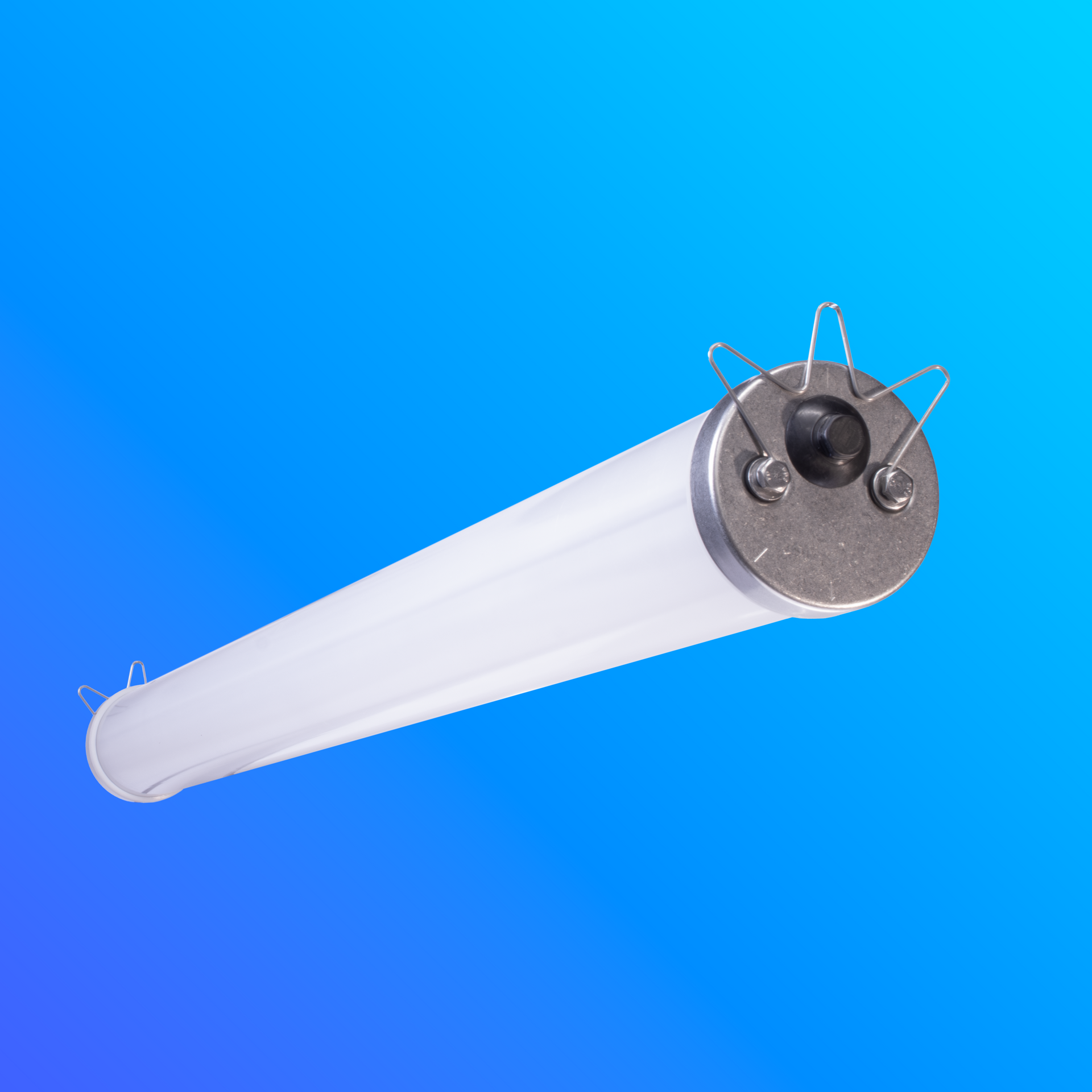

  • Available with 3 different mounting options
Configure

Overview

The ProTube is a high-performance food-grade LED linear fixture engineered for rigorous wash-down environments. With an IP69 rating, it withstands high-pressure, high-temperature water jets up to 80°C (176°F) from nozzle distances of
15-20 cm (6-8 inches). Built to NSF food-zone standards, its smooth circular housing prevents accumulation of debris or residues, enabling fast, thorough cleaning and sanitation. The sealed polymer body, stainless hardware and tool-free linkable end-caps provide both durability and flexibility, while delivering high luminous efficacy and long service life in processing plants, car-washes, cold storage and other demanding facilities.


Applications

  • Food processing, meat processing, and agricultural facilities
  • Poultry Commercial and Industrial Farm
  • Cold storage and freezer facilities
  • Commercial kitchens and food preparation areas
  • Pharmaceutical manufacturing
  • Car wash facilities
  • Dairy processing and beverage production facilities
  • Marine and boat wash facilities
  • Industrial and Chemical cleaning stations

Certifications

IP65 Rating
IP66 Rating
IP67 Rating
IP69 Rating
UL Listed
RoHS Compliant
NSF International
NEMA 4X
5-Year Warranty

Documents

PDF Icon
Specification Sheet
PDF Icon
Ordering Guide
PDF Icon
Assembly Guide
PDF Icon
Brochure
IES Download

Specification Table

Product Type Vapor Tight Linear Light Lengths Available 2 ft, 4 ft, 8 ft
Dimensions (4 ft) 47" x 3.7" (L x D) Housing Material Polycarbonate or Acrylic with Stainless Steel End Caps
Lens Options Clear PC, Frosted PC, Clear Acrylic, Frosted Acrylic Lumen Packages 2,000 – 20,000 lumens
Efficacy Up to 140 lm/W CCT Options 3000K, 3500K, 4000K, 5000K
CRI 80 (Standard), 90 (Optional) Operating Voltage Universal (120-277 VAC) or High Voltage (347-480 VAC)
Frequency 50/60 Hz Power Factor >0.90
Dimming 0-10V Standard, Dim-to-Off Option IP Rating IP65, IP66, IP67, IP69
NEMA Rating 4X NSF Certified Yes (Near Food Safe)
Certifications/Compliance UL 1598 Wet Location, Made in USA, BAA/BABA Compliant Mounting Options Wire Form Bracket, Latch Mount, Rigid Mount
Optional Features 10W Emergency Backup, PIR Occupancy Sensor, 10 ft Cord/Cord with Plug Warranty 5 Year
