Custom Photometric Layouts
Eliminate the guesswork. We build precision AGi32 photometric models using real SLP fixture data. See exact levels across your facility before a single fixture ships. Ensure compliance, remove dark corners, and order with 100% confidence. This service is provided to OEM partners and customers moving forward with an SLP fixture order, it's part of how we support your project from spec to install. A layout fee applies up front, and that amount is credited back to your PO when your order is placed.
Why It Wins
- Add light fixtures and fix dark corners digitally
- Meet minimum light-level requirements
- Never overbuy fixtures or under-light a crucial space again
- Make your proposal harder to turn down by providing undeniable proof of performance
What You Get

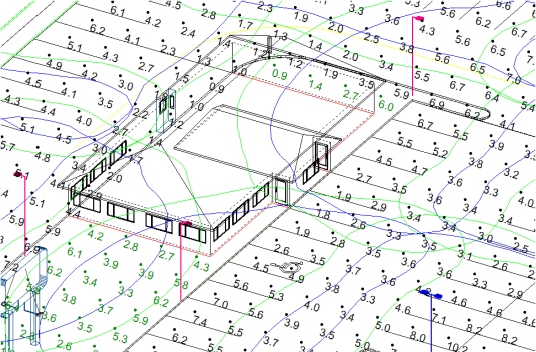

- Detailed footcandle readings
- Complete breakdown of models, mounting heights, lumen packages, and CCT

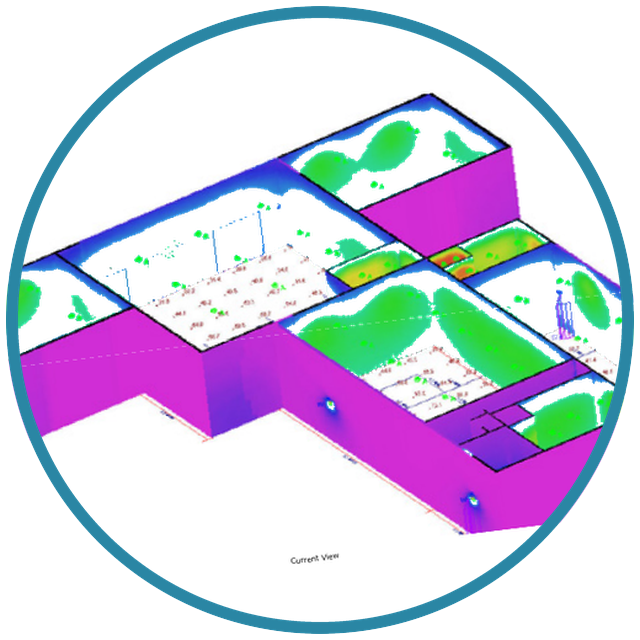

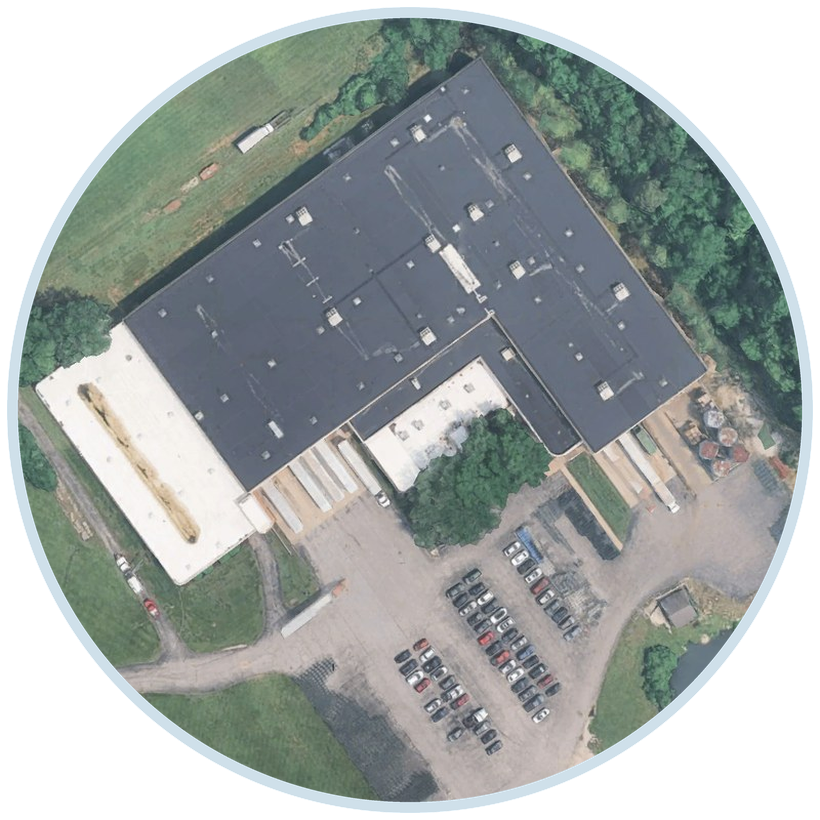

- A clear visual design overlaid directly onto your property layout
- A clean, professional report ready for bids, approvals, and rebates
What is an IES file?
Illuminating Engineering Society · LM-63 standard

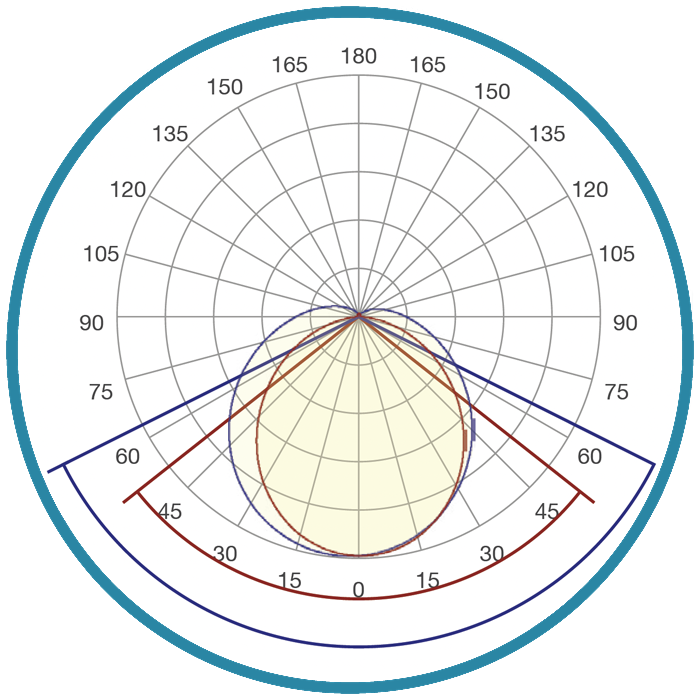

An IES file is a fixture's light "fingerprint," a lab-tested file that maps exactly how much light the fixture throws in every direction. Software like AGi32 reads that real data to calculate true light levels on your floor instead of guessing. No IES file means the layout is an estimate, not a measurement.
What is a footcandle?
The unit that measures usable light
A footcandle is one lumen of light landing on one square foot of surface. Lumens measure the raw output of a fixture, but footcandles tell you how bright your workspace actually is once the light reaches it.
Target levels by application
