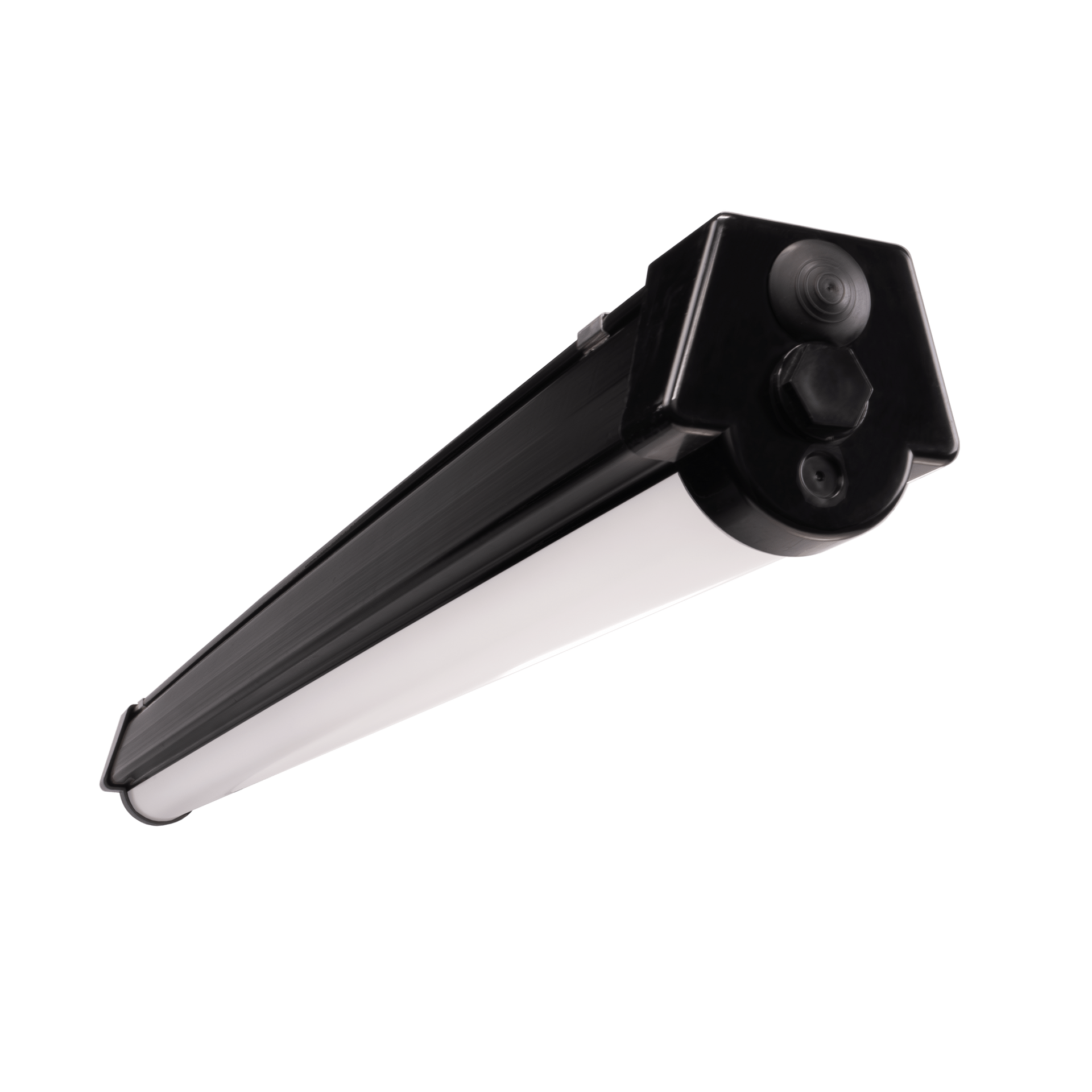

Profile Series Linear Light Fixture Black

Profile I™ LED Linear Fixture | IP66 Wet Location, NSF Listed

Features and Benefits

  • IP65/IP66 Certified & UL Wet Location Rated
  • NSF Certified for Food Zones
  • 2', 4', and 8' Lengths Available
  • UL f1 Rated Co-Extruded Polycarbonate
  • Encapsulated Electrical Enclosure
  • Multiple Mounting Solutions (ceiling mount, chain mount, pendant mount)
Configure

Overview

The Profile I is a rugged LED linear fixture built for wet, dusty, and demanding environments. Its seamless co-extruded polycarbonate profile integrates the housing and lens into a single piece, delivering clean lines and UL f1 rated UV stability. IP65/IP66 certified and UL wet location rated, it performs reliably in warehouses, cold storage, food processing, and outdoor applications. The encapsulated electrical enclosure protects higher-voltage components per UL 1598 standards, while NSF component listing ensures food-safe compliance. 316 stainless steel brackets provide corrosion-resistant mounting, with 2', 4', and 8' lengths available in black or white.


Applications

  • Warehouses and distribution centers
  • Cold storage and freezer facilities
  • Food processing and commercial kitchens
  • Supermarkets and garden centers
  • Loading docks and parking structures
  • Office and general lighting
  • Outdoor canopies and awnings
  • Transportation and subway platforms
  • Locker rooms and utility areas

Certifications

IP65 Rating
IP66 Rating
UL Listed
RoHS Compliant
NSF International

Specification Table

Product Type Vapor Tight Linear Light Lengths Available 2 ft, 4 ft, 8 ft
Dimensions (4 ft) 48" x 4.20" x 4.38" (L x W x H) Housing Material Co-Extruded Polycarbonate (UL f1 Rated)
Lens Options Black, Frosted Lumen Packages [PLACEHOLDER]
Efficacy [PLACEHOLDER] CCT Options [PLACEHOLDER]
CRI 80 (Standard), 90 (Optional) Operating Voltage [PLACEHOLDER]
Frequency 50/60 Hz Power Factor >0.90
Dimming [PLACEHOLDER] IP Rating IP65, IP66
NEMA Rating [PLACEHOLDER] NSF Certified Yes (Component Listed)
Certifications/Compliance UL 1598 Wet Location, RoHS Compliant Mounting Options 316 SS Bracket, Direct Ceiling, Bail/Chain, Threaded Rod Pendant
