NautiLink™ 4ft-to-8ft Vapor Tight Linking Kit for the Nautilus Series
Features and Benefits
- Combines Two Nautilus 4ft Fixtures into One 8ft Luminaire
- Maintaines full IP Ratings Across the Joint
- UL Listed Luminaire Fitting (HYXT) — No OEM Relisting Required
- Field-Assembled with Standard Hand Tools
- Reduces Freight, Pallet Size, and SKU Count
- Coupler, Plugs, and All Hardware Included
- Precise modular construction
Overview

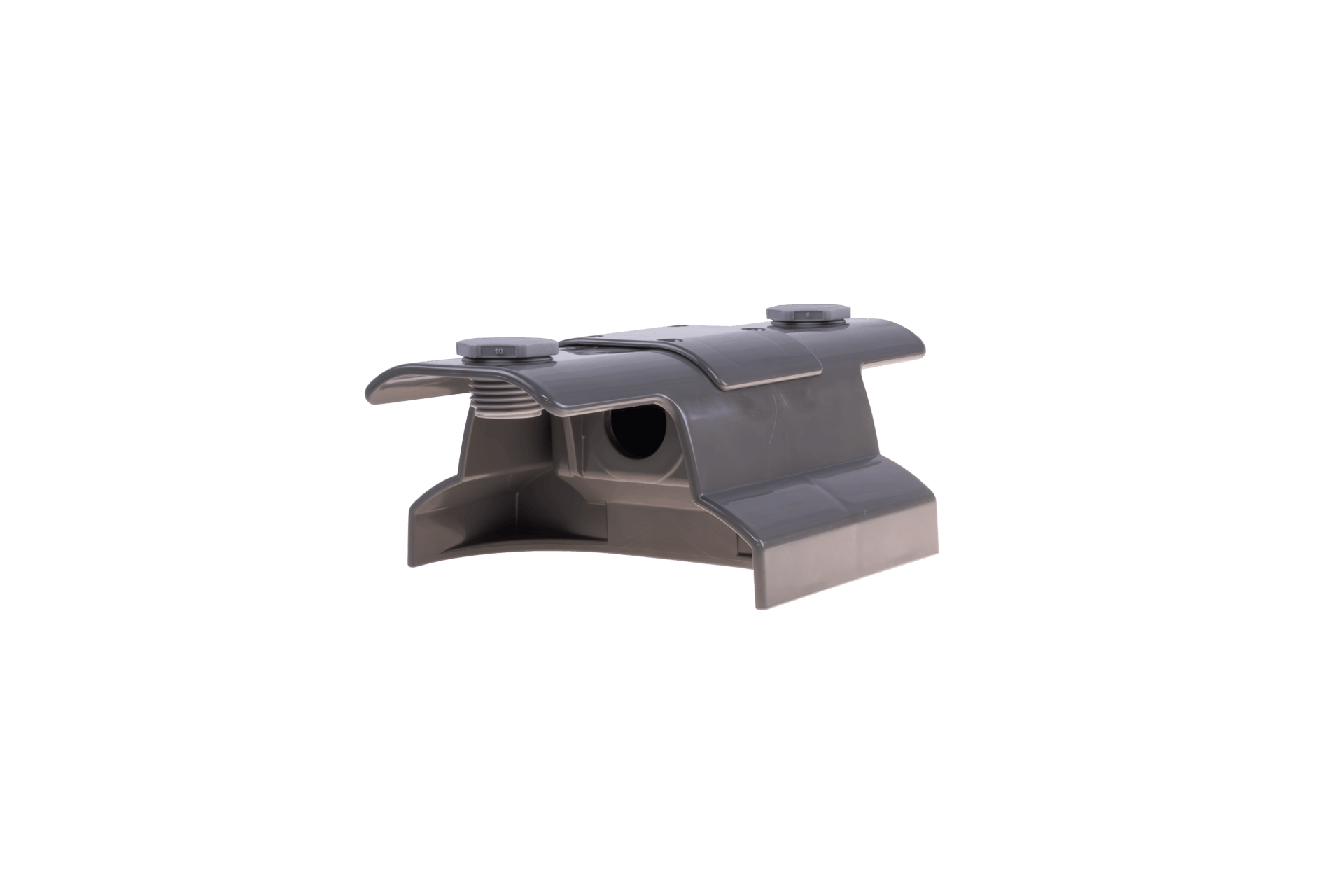

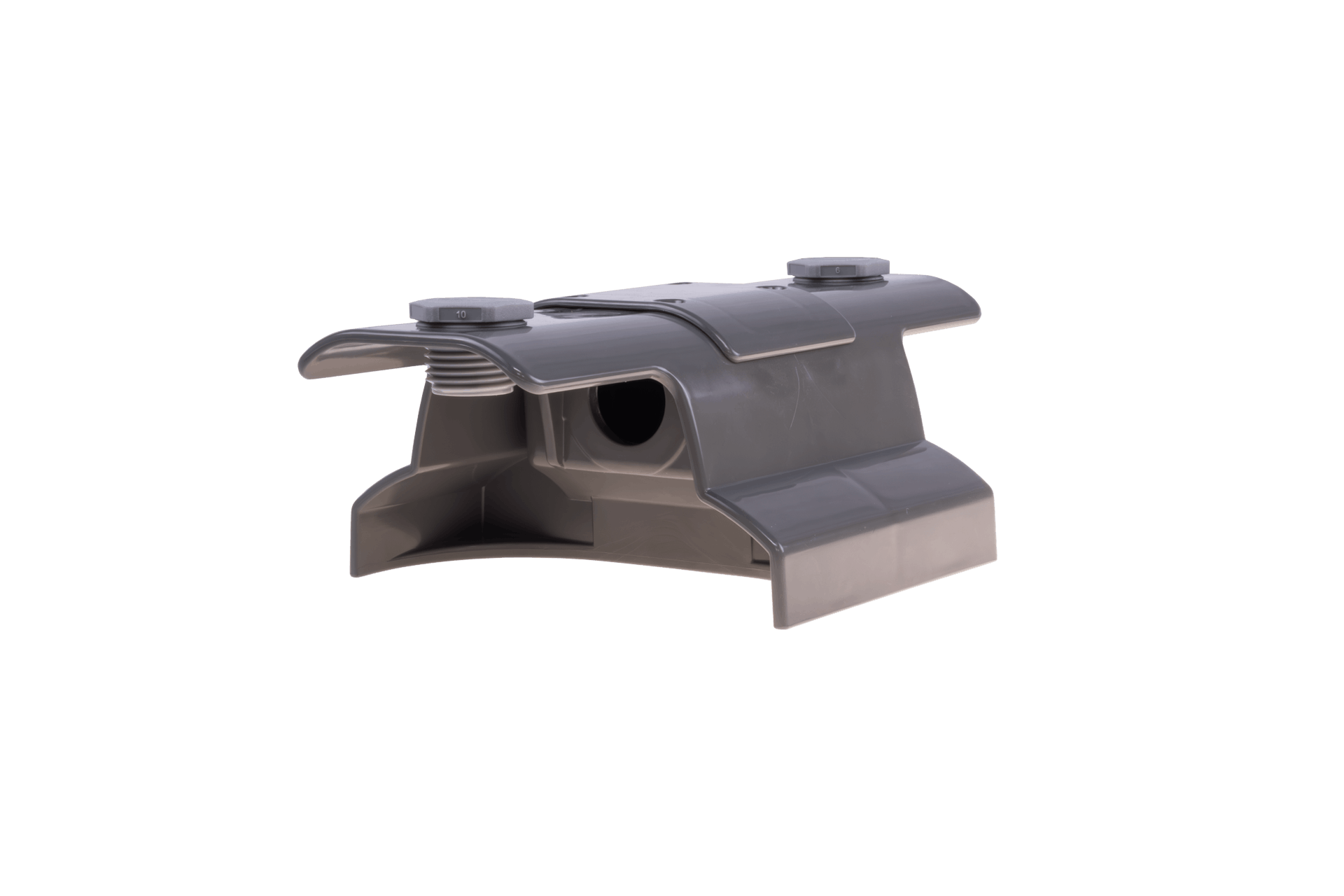

The NautiLink is a precision-engineered linking kit that combines two Nautilus 4ft vapor tight fixtures into a single, seamless 8ft luminaire. It preserves the Nautilus platform's full IP integrity, washdown performance, and chemical resistance across the joint, delivering production-grade precision in a modular build. The kit ships complete with the coupler, both plugs, and all required hardware, and field-assembles with standard hand tools. UL Listed as a Luminaire Fitting (HYXT), NautiLink inherits the Nautilus luminaire listing, eliminating the need for OEM relisting and streamlining integration into finished assemblies.
Applications
- Food processing, meat processing, and agricultural facilities
- Poultry Commercial and Industrial Farm
- Cold storage and freezer facilities
- Commercial kitchens and food preparation areas
- Pharmaceutical manufacturing
- Car wash facilities
- Dairy processing and beverage production facilities
- Marine and boat wash facilities
- Industrial and Chemical cleaning stations
Specification Table
| Product Type | Luminaire Fitting (Linking Kit) | Compatibility | Nautilus 4 ft Series |
| Assembled Length | 8 ft (joins two 4 ft fixtures) | Coupler Dimensions | [L x W x D — TBD] |
| Housing Material | Chemshield PCX — PC/PET Makroblend | Hardware | 316 Stainless Steel |
| IP Rating | IP69 (preserved across joint) | NSF Certified | Yes (Near Food Safe) |
| Operating Voltage | Pass-through — matches host Nautilus fixture | Kit Contents | (1) Coupler (2) HEYCO 3546B Hardware Plugs (2) HEYCO 3623B Inter-Piece Plugs (4) #8 Plastic-Cutting Countersunk Screws |
| Installation | Field-assembled with standard hand tools | Country of Origin | Made in USA — Sullivan & Fenton, MO |
| Certifications | UL Listed Luminaire Fitting (HYXT), RoHS, BAA/BABA Compliant | Warranty | 5-Year Limited |
