Citadel4s 2 Ft. Compact Vapor Tight LED Light | IP69 and NSF
Features and Benefits
- IP69-rated & Washdown Ready
- NSF Certified for Splash Zones
- Compact low bay design fits tight places
- Impact resistant acrylic or polycarbonate lens options
- Fiberglass housing will not burn or melt and chemical resistant
- Pour-in-place polyurethane gasket creates watertight seal
Overview

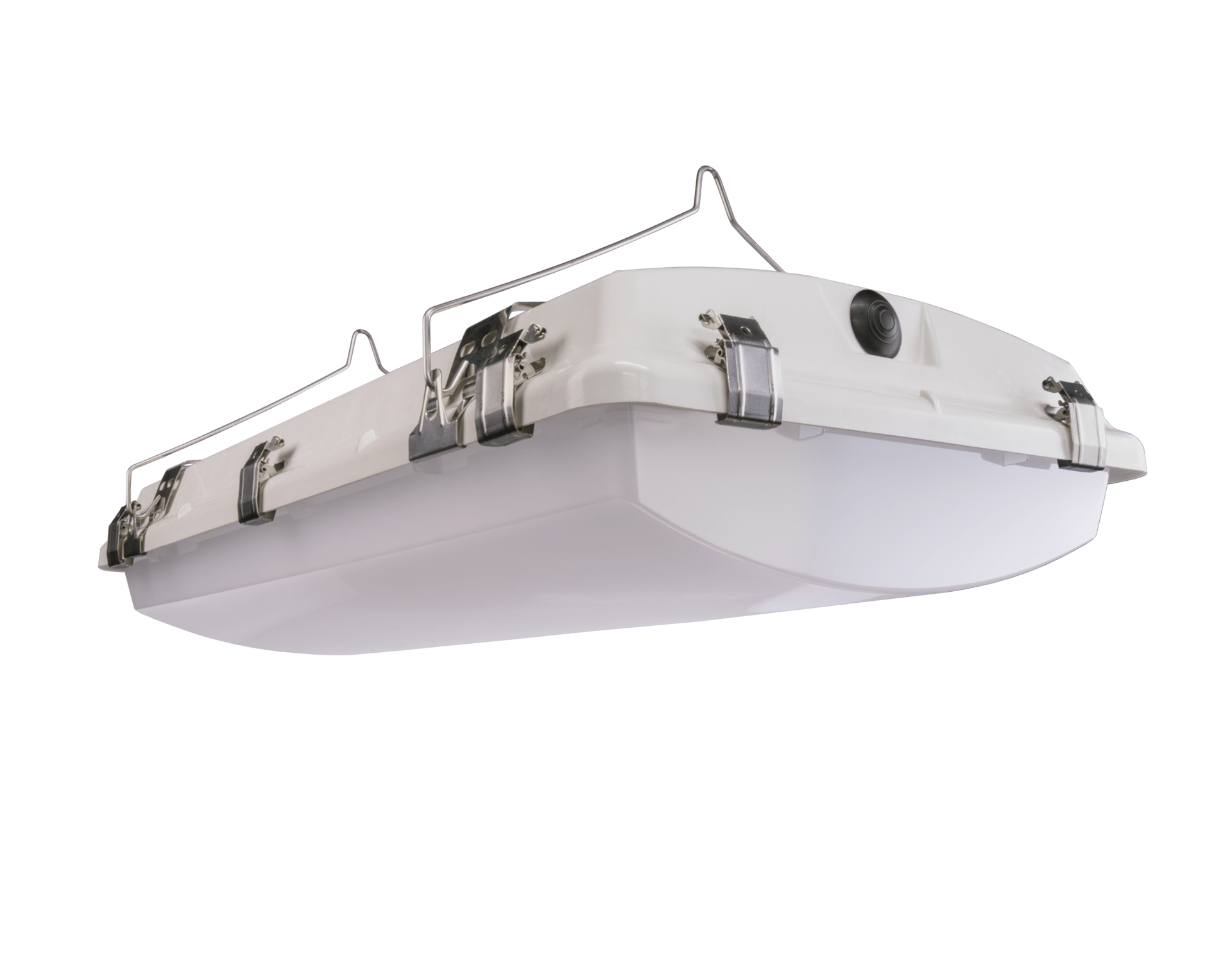

The Citadel4S™ Compact Vapor Tight LED Low Bay is purpose-built for tight spaces that demand superior protection. Combining proven Citadel features into a smaller footprint, this fixture achieves IP65, IP66, IP67, and IP69 ratings along with NEMA 4X certification for high-pressure washdowns and corrosive environments. The UL 5VA fiberglass housing won’t melt or burn, and the poured-in-place polyurethane gasket ensures exceptional sealing. NSF-certified for splash zone safety in food processing. The CT4S is ideal for low bay areas in processing plants, cold storage, parking structures, and industrial facilities where space is limited but protection isn’t optional.
Applications
- Food processing, meat processing, and agricultural facilities
- Parking garages and covered parking structures
- Cold storage warehouses and walk-in freezers
- Manufacturing facilities with dust and moisture
- Low ceiling industrial areas and mezzanines
- Loading docks and shipping/receiving areas
- Commercial kitchens and prep areas
- Car wash facilities
Specification Table
| Product Type | Compact Vapor Tight LED Low Bay | Lengths Available | 2 ft |
| Dimensions (L x W x H) | 26.5" x 14.5" x 5.8" | Housing Material | UL 5VA Fiberglass |
| Weight | N/A | Lens Material | Acrylic or Polycarbonate |
| Lens Options | Smooth Clear, Smooth Frosted, Ribbed Frosted (Acrylic or PC) | Lumen Packages | 2,000 – 10,000+ lumens |
| Wattage Range | N/A | Efficacy | N/A |
| CCT Options | 4000K, 5000K | CRI | 80 (Standard), 90 (Optional) |
| Operating Voltage | Universal (120-277 VAC) or High Voltage (347-480 VAC) | Frequency | 50/60 Hz |
| Power Factor | >0.90 | Dimming | 0-10V Standard, Dim-to-Off Option |
| IP Rating | IP65, IP66, IP67, IP69 | NEMA Rating | 4X |
| NSF Certified | Yes (Splash Zone / Non-food Zone Compliant) | UL Listing | Wet Location, UL 1598 |
| Operating Temp | -40°F to 131°F (-40°C to 55°C) | Certifications/Compliance | RoHS, DLC QPL, Made in USA, BAA/BABA Compliant |
| Mounting Options | V-Hook, Mounting Bracket, Rigid Mount, Single/Dual Pendant | Hub Sizes | ½" NPT, ¾" NPT |
| Latch Options | White or 316 Stainless Steel | Continuous Row | No |
| Optional Features | 10W Emergency Backup, PIR Occupancy Sensor, 10 ft Cord/Cord with Plug | Warranty | 5 Year |
